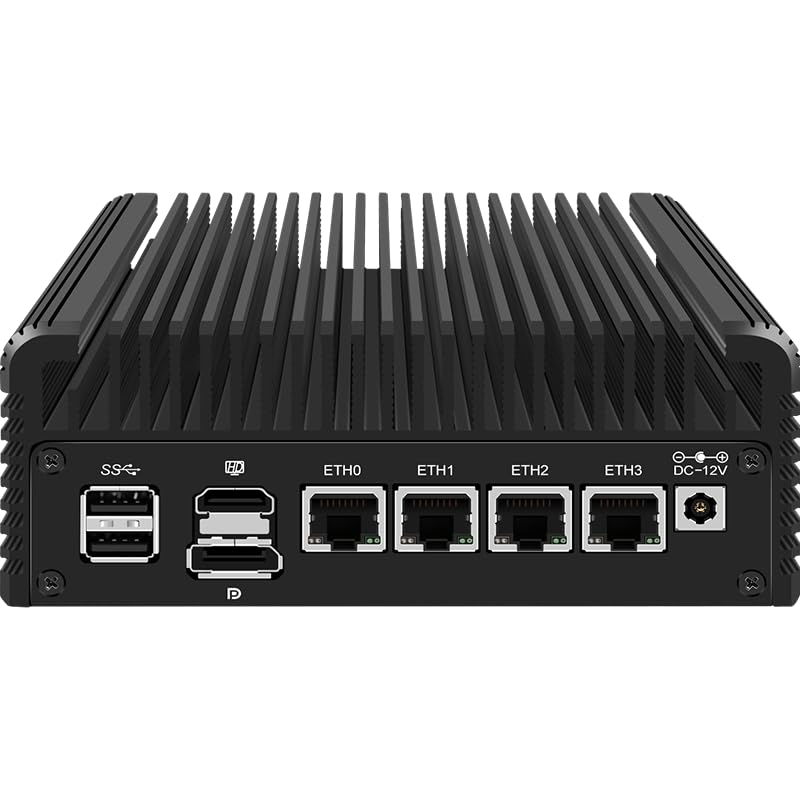

CWWK Mini Firewall PC with Intel N100 Processor, 16GB DDR5 RAM, 256GB NVMe SSD, 4x 2.5GbE i226V LAN Ports - High-Performance Micro Router for Home & Office Network Security, VPN, Firewall, and OPNsense/PFSense Applications
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:26 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:71579620
Product Description
CW-N100-4LAN Processor Intel N100 Memory 1* SO-DIM DDR5 480OMHZ (compatible with 5200//5600MH2) as large as 32GB Storage 1*M.2 NVMex4 (multiple M.2 or mSATA/SATA can be supported through the adapter board) Graphics Intel UHD Graphics Display HDMI2.1 supports 4096x2180@60Hz DP1.4 supports 4096×2160@60Hz Network card 4*intel i226.V 2.5G network card Wifi 1*M.2 KEY E (support Bluetooth/WiFi6 module USB 4*USB2.0 Heat dissipation no fan, two copper tubes heat conduction aluminum shell passive heat dissipation BIOS AMI EFI BIOS supports self-starting when calling, GPIO, PXE network calling super Power supply DC-12V5 (55*25 connector) Extended pin header 2*4Pin fan header with temperature control, 1*serial pin header, 1*USB pin header, 1*SW (shutdown USB pin header) Expandable M.2WiF supports expansion to NVMe/SATA/mSATA hard disk signals M.2 X4 socket can expand 2/3/4 M.2x1 Size 145.6mm (L) 145.4mm (W) X 53.6mm (H) Installation method desktop, wall-mounted Working environment -0°C~t70'C relative temperature 5%-85% CPU Intel Processor N100 6M Cache, Turbo up to 3.40 GHzIntel Core i3-N305 processor 6M cache, turbo up to 3.80 GHz Connectable ports 4 x 2.5GbE i226V LAN1 x HDMI,1 x DP,6 x USB2.0,2 x USB3.01 x M.2 KEY-E Scalable Supports 2.5-inch SATA hard diskSupports installation of 8010 built-in small fan Multiple ways to play 4 x M.2x1 NVMe hard drive signal3 x M.2 x1 NVMe+1 To 6SATA adapter boardM.2 WiFi port can be directly expanded to NVMe hard drive signalM.2 WiFi port, expandable to SATA\mSATA\M.2(SATA)
Product Features
1*SO-DIMM DDR5 memory 4800MHz compatible with 5200/5600MHZ
4*Intel i226-V network card chip full UDE2.5G with filter connector
HDM12.1+DP1.4 dual display interface, support 4096 x 2160@60Hz
M.2NVMe x4 high-speed interface, can split multiple M.2 hard drives through the adapter board
M.2 WiFi slot supports Bluetooth/WiFi6 wireless receiving block;M.2 WiFi interface supports adapter board expansion M.2NVMe or mSATA solid state disk
The M.2 x4 interface supports the expansion of 2 M.2 NVMe x1 adapter boards
TF card holder supports data storage or system boot； 2*small 4PIN fan, fan power supply base supports temperature control fan
If you need to customize the LOGO on the panel, please contact customer service and provide free laser laser engraving (PS laser-engraved machines do not support returns).
Customer Reviews
Purchased the barebone kit with my own memory and NVMe drive (Silicon Power 256GB NVMe M.2 PCIe Gen3x4 2280 SSD and Crucial RAM 8GB DDR5 4800MHz CL40 Laptop Memory). The mini pc was packaged well and plastic wrapped. I have installed opnsense and am using it as a firewall/router. The memory and ssd were very easy to install, just unscrew the bottom cover. Installation of opnsense went smoothly. It detected the USB boot drive right away, I didn't even have to go into the bios. Everything has been running smoothly. It feels a little warm, but not hot. I would definitely recommend it.
