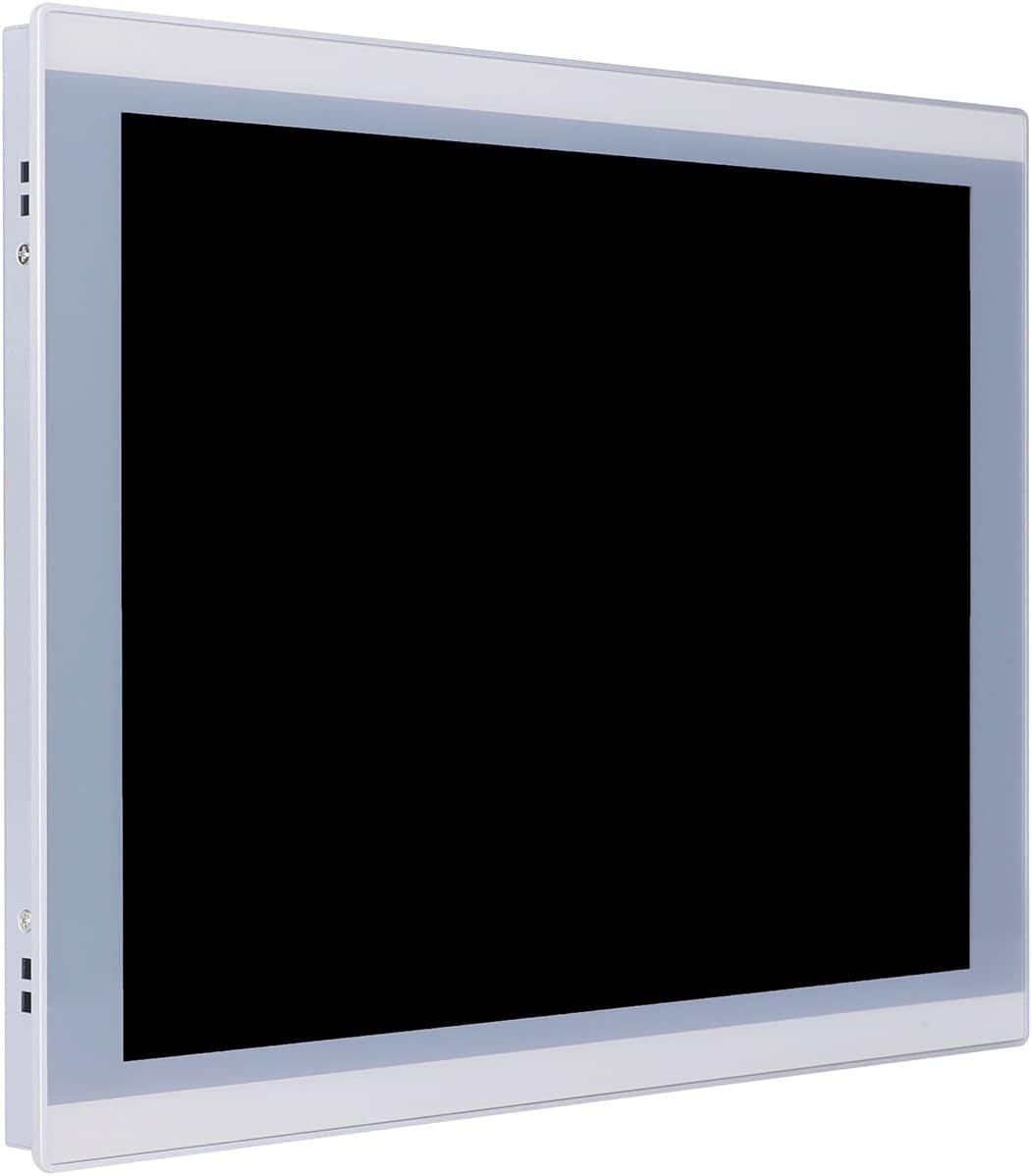

Partaker 15" TFT LED IP65 Industrial Panel PC - Intel i7-6500U, Windows 11/Linux, High-Temp 5-Wire Resistive Touch, 16GB RAM, 256GB SSD + 1TB HDD, A5/VGA/HDMI, Dual LAN & COM Ports - Ideal for Factory Automation, HMI Control & Industrial Monitoring
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:17 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:79882574
Product Description

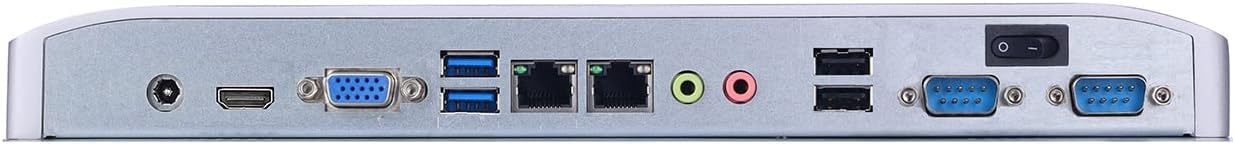

Model Number: Partaker A5 PA-150TPC-CE5A(I76) Panel Specification: 15" TFT LED panel, front panel protection IP65 Touch Screen: High temperature five-wire resistive touch screen Chassis: Aluminum Processor: Intel Core i7-6500U Processor 4M Cache, up to 3.10 GHz Memory: 2 x SODIMM DDR3L-1600, max. to 16GB RAM Storage: 1 x mSATA SSD, 1 x M.2 2280 NVME PCIE X4/SATA SSD, 1 x 2.5" SATA SSD/HDD I/O: 12V DC, HDMI, VGA, 2 x USB3.0, 2 x USB2.0, 2 x LAN, AUDIO-IN&OUT, 2 x COM, POWER_SW Cooling System: Fanless Expansion: Mini PCIE slot for WiFi/4G, with sim slot Watchdog Timer: 255 Dimension: 354.3 x 278.3 x 54mm Gross Weight: 4KGS Opening Hole Size: 348 x 272mm Resolution: 1024 x 768 Perspective: 80(L), 80(R), 60(T), 60(B) Brightness: 350cd/m2 Contrast: 1000 Backlight Life: 30,000 hours (min.) Transmittance: 86±5% at 550 nm wavelength Durability (Touch Count): 200 million times Installation: Embedded recommended/Wallmounted/Desktop/Cantilevered etc Operating Temperature: 0 ~ 50°C with SSD, 0 ~ 40°C with HDD Storage Temperature: -20 ℃ ~ 60 ℃ Operating Humidity: 10% ~ 95% @ 40 ℃ without condensation Power Supply: DC100-240V AC/50-60Hz, 12V Packing List: Panel PC, Power Supply, Power Cord, Embedded Buckle Kits, Warranty Card System Support: Windows 10/11, Linux Ubuntu etc, System Default Option: Windows 11 pro in English
Product Features
Industrial-Grade Durability This 15-inch TFT LED industrial panel PC comes with IP65-rated front panel protection and a high-temperature 5-wire resistive touch screen, ensuring rugged durability in challenging environments.
Precise Touch Control The 5-wire resistive touch screen offers precise control with a typical 1024 x 768 resolution, providing accurate touch input for various industrial applications.
Powerful Performance Powered by an Intel Core i7 6500U processor, this PC is a robust workhorse designed for 24/7 operation across a wide range of industrial tasks.
Effortless Setup Pre-installed with Windows 11 Pro (64-bit), this PC is ready to go right out of the box, ensuring a seamless setup experience.
Smart and Silent Design Featuring an aluminum alloy fanless passive cooling system, this PC operates silently and conserves energy efficiently. With an industrial aesthetic design, a well-organized interface layout, support for automatic power-on after power failures, and included mounting embedded buckle kits, it's designed to meet your industrial needs with ease.
