Partaker 19" TFT LED IP65 Industrial Panel PC with Intel I5-1135G7 Processor | Windows 11/Linux OS | 32GB RAM | 512GB SSD + 1TB HDD | High-Temp 5-Wire Resistive Touchscreen | A11, VGA, HDMI, Dual LAN & COM Ports - Ideal for Factory Automation, HMI Control & Industrial Computing
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:17 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:94703076
Product Description
Model Number: Partaker A11 PA-190TPC-CE5A(I5B) Panel Specification: 19" TFT LED panel, front panel protection IP65 Touch Screen: High Temperature 5-Wire Resistive Touch Screen Chassis: Aluminum Processor: Intel Core i5-1135G7 Processor 8M Cache, up to 4.20 GHz Memory: 2 x SODIMM DDR4-3200, max. to 64GB RAM Storage: 1 x M.2 2260/2280 PCIE X1/SATA SSD, 1 x 2.5" SATA SSD/HDD I/O: 12V DC, HDMI, VGA, 2 x USB3.0, 2 x USB2.0, 2 x LAN, AUDIO-IN&OUT, 2 x COM, POWER_SW Cooling System: Fanless Expansion: 1 x M.2 Key E slot for WIFI6, 1 x M.2 Key B slot for 5G, with sim slot Watchdog Timer: 255 Dimension: 428 x 351.65 x 54.5mm Gross Weight: 6KGS Opening Hole Size: 422 x 346mm Resolution: 1280 x 1024 Perspective: 80(L), 80(R), 60(T), 60(B) Brightness: 250cd/m2 Contrast: 1000 Backlight Life: 30,000 hours (min.) Transmittance: 80±5% at 550 nm wavelength Durability (Touch Count): ≧35 million times Installation: Embedded recommended/Wall mounted/Desktop/Cantilevered etc Operating Temperature: 0 ~ 50°C with SSD, 0 ~ 40°C with HDD Storage Temperature: -20 ℃ ~ 60 ℃ Operating Humidity: 10% ~ 95% @ 40 ℃ without condensation Power Supply: DC100-240V AC/50-60Hz, 12V Packing List: Panel PC, Power Supply, Power Cord, Embedded Buckle Kits, Warranty Card System Support: Windows 10/11, Linux Ubuntu etc, System Default Option: Windows 11 pro in English
Product Features

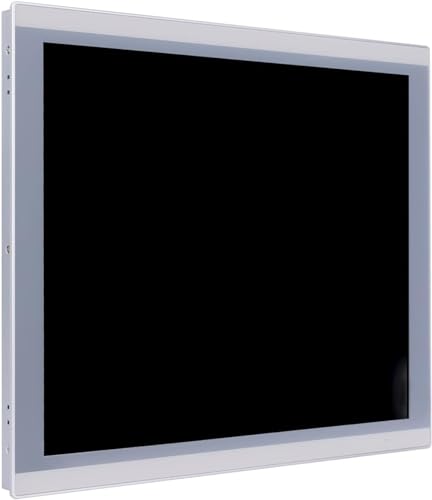

Experience a clear and durable touch control on the 19 inch tft led screen, which features a High temperature 5-wire resistive touch technology and a typical resolution of 1280 x 1024 pixels.
Handle demanding applications with ease thanks to the powerful intel gen 11th core i5 1135g7 processor and Windows 11 pro (64 bit) operating system, which are pre-installed and ready to use out of the box.
Save energy and reduce noise with the aluminum alloy fanless passive cooling design, which ensures a silent and stable performance for 7 x 24 hours of industrial use.

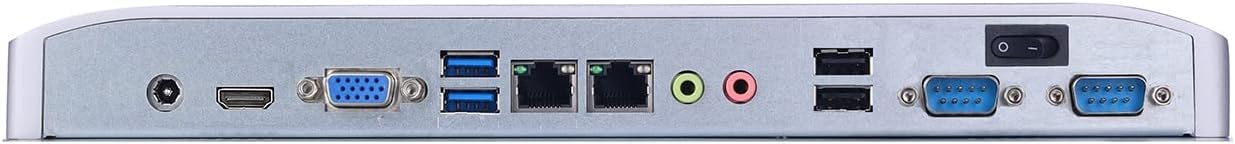

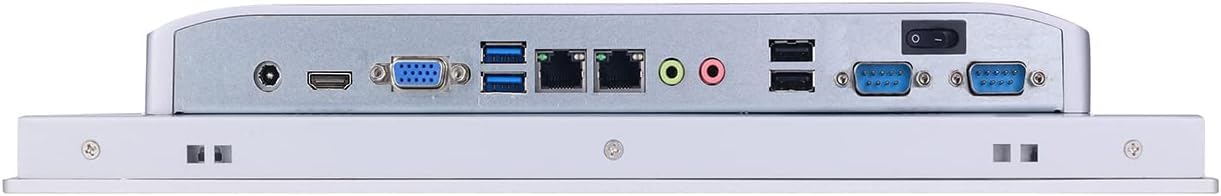

Connect to various devices and peripherals with the multiple ports and interfaces, including 12v dc, hdmi, vga, 2 x usb3.0, 2 x usb2.0, 2 x lan, audio-in&out, 2 x com, power_sw. The front panel is IP65 rated for dust and water resistance.

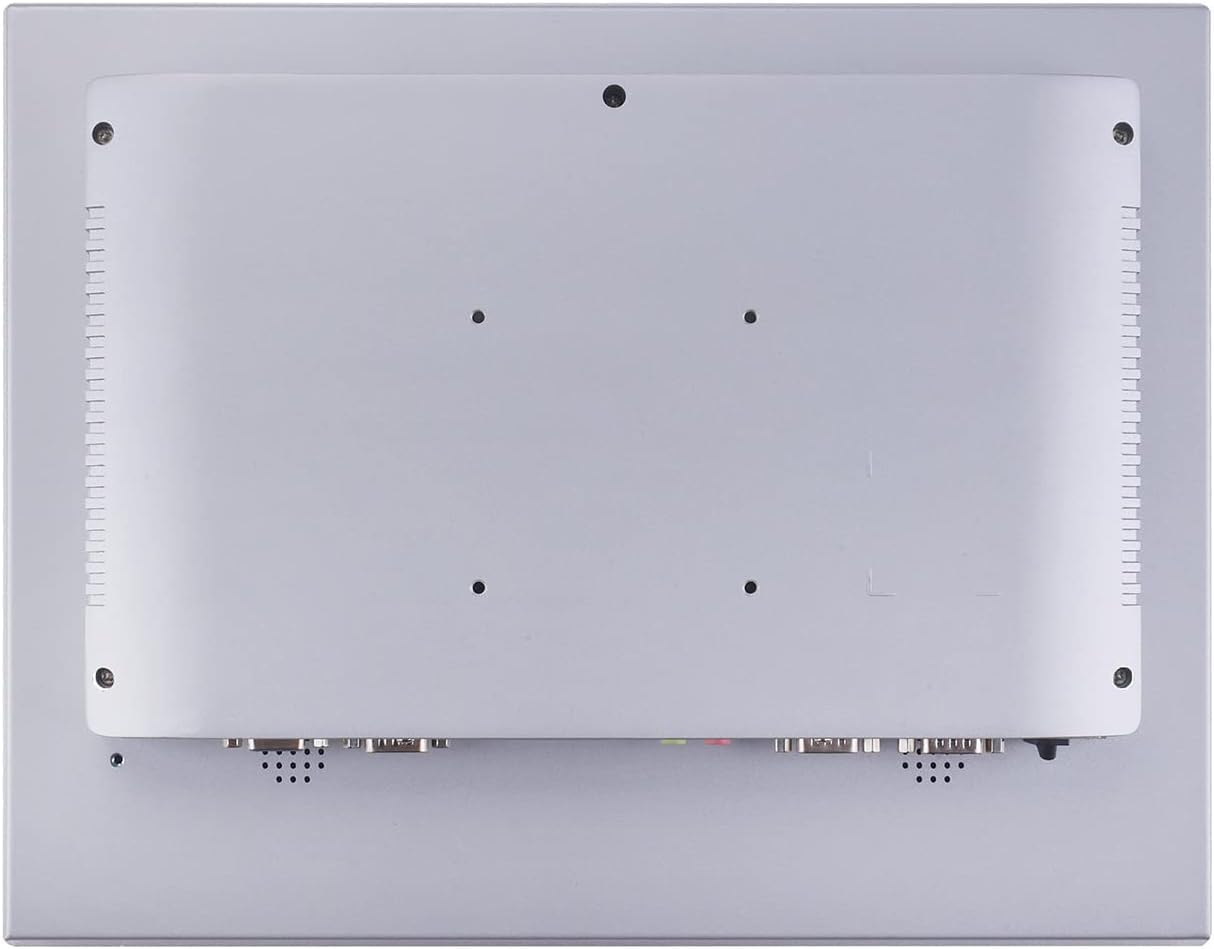

Mount the panel pc easily and securely with the embedded buckle kits, which support automatic power on after power failure. The panel pc measures 428 x 351.65 x 54.5mm, and weight 6kgs. It comes with a 12v power supply and a power cord.
